Modern and minimalist, the Phaze 3 52" features a sleek tri-blade design powered by a 3-speed, reversible motor, integrated lighting with non-dimmable LED bulbs included.
Limited Lifetime Warranty
- Finish:
- White
- Blade Finish:
- White / White
- Blade Span:
- 52
- Blade Count:
- 3
- Blade Pitch:
- 10.5
- Mounting Method:
- Dual Mount (Flat or Angled Ceiling)
- Mounting Location:
- Indoor
- Downrod Count:
- 1
- Downrod Length:
- 6
- Downrod OD:
- 21
- Diameter:
- 52
- Voltage:
- 120V/60Hz
- Primary Bulb JA8 Compliant:
- No
- Ceiling to Blades Inches:
- 29.86
- Motor Type:
- AC
- Motor Size:
- 153x15
- Reversible Motor:
- Yes
- Max Slope:
- 23
- Light Kit Included:
- Integrated
- Light Control:
- Pull chain On/Off
- Glass Finish:
- Frost White
- Bulb Count:
- 2
- Bulb Size:
- A19
- Primary Bulb Type:
- LED
- Color Temperature:
- 3000
- High Speed (CFM):
- 4046.56
- Low Speed (CFM):
- 2050.02
- RPM High Max:
- 186.00
- RPM Low Max:
- 94.00
- Watt High Max:
- 56.90
- Watt Low Max:
- 17.00
- Number of Speeds:
- 3
- Reverse Switch Direction:
- Left/Right Slide Switch
- Housing Material:
- Steel
- Blade Material:
- MDF
- Lead Wire Length:
- 76
- Control Method:
- Pull Chain
- Approvals:
- cETLus
- Country Of Origin:
- China
- CRI:
- 80
- Spec Sheet:
- /content/spec/PHA52W3_SpecSheet.pdf
- Install Guide:
- /content/installguide/PHA52xxx3_InstallGuide.pdf

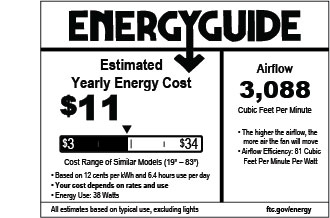

- Energy Guide:
- /content/doe/PHA52xxx3_DOE_ENG.jpg
