Alexis Indoor Ceiling Fan - ALS24xxx3
Alexis Ceiling Fan (Blades Included)
The Alexis 24" Fandelier by Craftmade offers ideal combination of the beautiful style of a contemporary drum pendant with the intelligence of a Wi-Fi enabled, heavy-duty, 3-speed reversible motor ceiling fan with a set of three custom 18" clear polycarbonate blades. Both the interior fan and the integrated dimmable 24 Watt 3000-5000 CCT LED lit bottom ring of the fandelier can be controlled using the included handheld remote control or through the integrated Wi-Fi feature using the Bond app which allow access to additional functions including voice control, breeze, and timer functions compatible for use with most smart home devices, smartphones, and systems with no additional hub needed.
- Two options to Control fan: Included WUCI-CCT Handheld Control or Wi-Fi enabled Smart by Bond to use with most smart phones and devices
- Custom Alexis Polycarbonate Blades Included
- Dual Mount (Flat or Angled Ceiling up to 23°)
- Indoor Rated
- Integrated 24 Watt LED Light Kit(Dimmable)
- Heavy-Duty, 3-Speed Reversible Motor
- 6 inch Downrod Included

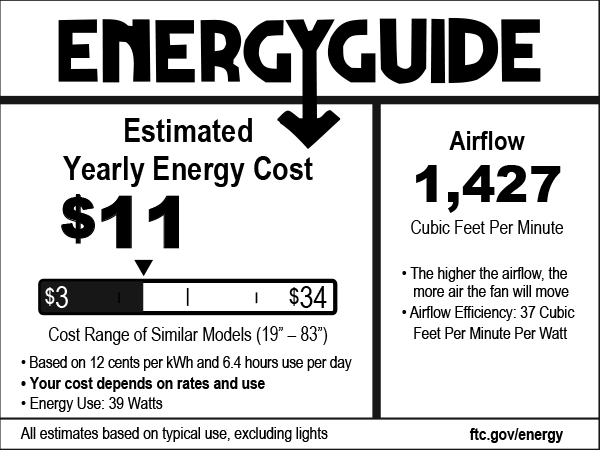

- Energy Guide 1427 CFM, High Speed 1868 CFM
| Base Model Number | ALS24xxx3 |
|---|---|
| Feature 7 | 6 inch Downrod Included |
| Feature 6 | Heavy-Duty, 3-Speed Reversible Motor |
| Feature 5 | Integrated 24 Watt LED Light Kit(Dimmable) |
| Feature 4 | Indoor Rated |
| Feature 3 | Dual Mount (Flat or Angled Ceiling up to 23°) |
| Feature 2 | Custom Alexis Polycarbonate Blades Included |
| Feature 1 | Two options to Control fan: Included WUCI-CCT Handheld Control or Wi-Fi enabled Smart by Bond to use with most smart phones and devices |
| Feature 9 | Energy Guide 1427 CFM, High Speed 1868 CFM |
| Blade to Ceiling (in.) | 13.64 |
| Canopy Height (in.) | 2.20 |
| Canopy Width (in.) | 6.02 |
| A: | 15.12 |
| B: | 13.64 |
| C: | 22.24 |
| D: | 6.02 |
| E: | 4.17 |
| F: w/o Light Kit | 4.17 |
| H: | 6.02 |
| H: | 22.24 |
| I: | 4.17 |
| Downrod Length (in.) | 6 |
| Housing Size | 22.24 |
| Housing Height | 4.17 |
| Height (in.) | 15.12 |
| Blade Sweep Opt (in.) | 18 |
| Blades | 3 |
| Blade Pitch (deg) | 13 |
| Motor Size (MM) | 82x25 |
| Amps at High Speed | 0.44 |
| Watts (Hi Speed) | 50.73 |
| Energy Guide Watts | 39 |
| Energy Guide CFM | 1427 |
| Energy Guide CFM_Watts | 37 |
| Energy Guide Est. Yearly Energy Cost | 11 |
| High Speed (CFM) | 1868 |
| Low Speed (CFM) | 927 |
| Carton Size (CU FT) | 4.55 |
| Blade Material | Polycarbonate |
| Bulb CCT | 3000/4000/5000 |
| Bulb Wattage | 24 |
| Bulb Base | Integrated LED |
| Bulbs | 1 |
| Bulb Size | Integrated LED |
| Bulb Type | LED |
| Collection | Alexis |
| Control Types Included | WUCI-CCT |
| CRI | 80 |
| Dimmable | Yes |
| Energy Star | No |
| Fan Dimensions Image | fan-dim-dia.png |
| Leadwire Length (in.) | 80 |
| Light Kit Adaptable | No |
| Light Kit Options | Integrated |
| Lumens | 1387 |
| Motor Type | AC |
| Mounting Location | Indoor |
| Mounting Method | Dual Mount (Flat or angled ceiling) |
| No. Downrods Included | 1 |
| No. Shipping Boxes | 1 |
| Product Type | Ceiling Fan (Blades Included) |
| Reversible Blades | No |
| Safety Rating | cULus |
| Shipping Weight (lbs.) | 24.21 |
| UPS Oversized | No |
| Voltage | 120V/60Hz |
| Warranty | Limited Lifetime Warranty |
| Glass or Shade Color | Frost White |
| A: | 15.12 |
|---|---|
| B: | 13.64 |
| C: | 22.24 |
| D: | 6.02 |
| E: | 4.17 |
| F: w/o Light Kit | 4.17 |
| H: | 6.02 |
| H: | 22.24 |
| I: | 4.17 |
| Downrod Length (in.) | 6 |
Product Spec Sheet
